A Spectrum of Sound: Exploring the Diverse World of Electric Guitars

The electric guitar, a cornerstone of modern music, is a fascinating example of applied physics and engineering. While seemingly simple in its outward appearance, the electric guitar relies on a complex interplay of components to transform the vibration of a string into the powerful, amplified sounds we know and love. Understanding how an electric guitar works involves exploring the principles of electromagnetism, mechanical vibration, and signal amplification.

The electric guitar works in a chain of events from strings to sound:

1. String Vibration: The player plucks a string, causing it to vibrate.
2. Magnetic Field Disturbance: The vibrating string disturbs the magnetic field of the pickup.
3. Electrical Current Induction: The changing magnetic field induces an electrical current in the pickup coil.
4. Signal Shaping: The electrical signal is shaped by the guitar's volume and tone controls.
5. Amplification: The signal is amplified by an amplifier.
6. Sound Production: The amplified signal drives a speaker, producing sound waves.

The Foundation: Mechanical Vibration

The journey of sound in an electric guitar begins with the player's interaction with the strings. When a guitarist plucks, strums, or picks a string, they impart kinetic energy, causing the string to vibrate (Denyer, 1992). The frequency of this vibration determines the pitch of the note. A higher frequency corresponds to a higher pitch, while a lower frequency corresponds to a lower pitch.

Several factors influence the frequency of a string's vibration:

• String Length: The shorter the string length (determined by the position of the player's finger on the fretboard), the higher the frequency.

• String Tension: The tighter the string tension (adjusted by the tuning machines), the higher the frequency.

• String Mass: The lighter the string (determined by its gauge and material), the higher the frequency.

The vibrating string creates a complex pattern of motion, with nodes (points of minimal movement) and antinodes (points of maximum movement). This pattern of vibration is crucial for generating the sound that the pickups will capture.

The Heart of the System: Electromagnetic Induction

The key to the electric guitar's operation lies in the principle of electromagnetic induction. This principle, discovered by Michael Faraday, states that a changing magnetic field will induce an electrical current in a conductor. Electric guitars use pickups to harness this principle.

• Pickup Construction: An electric guitar pickup typically consists of a coil of wire wrapped around a magnet or a set of magnets (Mottola, 2013). The magnet creates a static magnetic field that surrounds the strings.

• String Vibration and Magnetic Field Disturbance: When a steel or nickel string vibrates within the magnetic field of the pickup, it disturbs the magnetic field (Bacon, 2005). This disturbance creates a changing magnetic field.

• Electrical Current Induction: According to Faraday's Law, the changing magnetic field induces an electrical current to flow in the coil of wire within the pickup. The strength of the current is proportional to the strength of the magnetic field and the speed of the string's vibration.

• Signal Output: The electrical current generated in the pickup is a weak analog signal that represents the vibration of the string. This signal is then sent to the guitar's controls (volume and tone potentiometers) and then to the output jack.

Signal Shaping and Control: Sculpting the Tone

So, what do all the switches and knobs on an electric guitar do?

Before the signal reaches the amplifier, it passes through the guitar's onboard controls, allowing the player to shape the tone:

• Volume Potentiometer: The volume potentiometer (knob) is a variable resistor that controls the amplitude of the electrical signal. By adjusting the volume knob, the player can increase or decrease the signal strength, thereby controlling the loudness of the guitar.

• Tone Potentiometer: The tone potentiometer (knob), in conjunction with a capacitor, forms a simple low-pass filter (Hunter, 2015). This filter allows the player to cut high frequencies from the signal, resulting in a warmer, more mellow tone.

• Pickup Selector Switch: Guitars with multiple pickups typically have a selector switch that allows the player to choose which pickup(s) are active. This provides a range of tonal options, as each pickup has its own unique sonic characteristics.

Amplification: Unleashing the Sound

The weak electrical signal from the guitar is then sent to an amplifier via a cable plugged into the output jack (Smith, 2002). The amplifier performs several crucial functions:

• Signal Amplification: The amplifier increases the strength of the electrical signal, making it powerful enough to drive a speaker.

• Tone Shaping: Amplifiers typically have a variety of controls that allow the player to further shape the tone of the guitar, including gain, bass, mid, treble, and presence controls.

• Speaker Output: The amplified electrical signal is sent to a speaker, which converts the electrical energy back into mechanical energy, producing sound waves that we can hear.

The electric guitar is a remarkable instrument that combines the principles of physics, engineering, and artistry. From the initial vibration of the string to the final sound produced by the speaker, each step in the process is carefully designed to create a powerful and expressive musical tool. Understanding how an electric guitar works allows us to appreciate the ingenuity and craftsmanship that goes into creating these iconic instruments.

Types of Electric Guitars: A Categorical Overview

Electric guitars can be broadly categorized based on their body construction, pickup configuration, and intended musical style. While there is often overlap between these categories, this classification provides a helpful framework for understanding the diverse landscape of electric guitars.

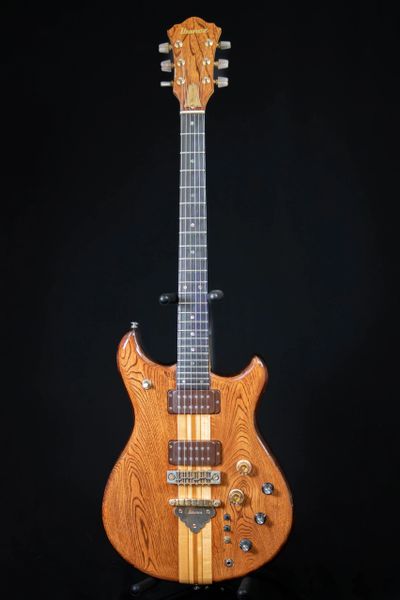

• Solid-Body Electric Guitars:

• Characteristics: Solid-body guitars are constructed from a solid piece (or multiple pieces glued together) of wood, typically mahogany, ash, alder, or basswood (Denyer, 1992). This construction provides excellent sustain, clarity, and feedback resistance, making them ideal for high-volume genres like rock, metal, and blues (Bacon, 2005). The lack of a resonant chamber means that the tone is largely determined by the pickups, tonewood, and hardware.

• Notable Examples: Fender Stratocaster, Fender Telecaster, Gibson Les Paul, Ibanez RG, ESP Eclipse.

• Semi-Hollow Body Electric Guitars:

• Characteristics: Semi-hollow body guitars feature a solid center block with hollow "wings" on either side (Smith, 2002). This construction combines the sustain and feedback resistance of a solid-body guitar with the warmth and resonance of a hollow-body guitar. Semi-hollow guitars are often favored by blues, jazz, and rockabilly players who seek a versatile tone with both clarity and warmth.

• Notable Examples: Gibson ES-335, Gibson ES-339, Ibanez AS series, Epiphone Casino.

• Hollow-Body Electric Guitars:

• Characteristics: Hollow-body guitars, also known as archtops, feature a fully hollow body, similar to an acoustic guitar, but with electric pickups. These guitars produce a warm, resonant tone with excellent acoustic projection, making them ideal for jazz, blues, and swing music (Hunter, 2015). However, they are also prone to feedback at high volumes, which can be a challenge for some players.

• Notable Examples: Gibson ES-175, Gretsch G6120, Epiphone Emperor.

• Chambered-Body Electric Guitars:

• Characteristics: Chambered-body guitars are similar to solid-body guitars, but with strategically placed chambers routed out of the body. These chambers reduce the weight of the guitar and add some of the warmth and resonance of a semi-hollow or hollow-body guitar. Chambered-body guitars offer a good compromise between sustain, feedback resistance, and tonal complexity.

• Notable Examples: Fender Telecaster Thinline, Gibson Les Paul Supreme.

Pickup Configurations: Shaping the Tone

The type and configuration of pickups significantly influence the tone of an electric guitar. Pickups are transducers that convert the vibration of the guitar strings into an electrical signal that can be amplified.

• Single-Coil Pickups:

• Characteristics: Single-coil pickups consist of a single coil of wire wrapped around a magnet (Wheeler, 1992). They produce a bright, clear tone with excellent articulation, making them ideal for clean tones, blues, and country music. However, they are also prone to hum and noise, particularly at high volumes.

• Notable Examples: Fender Stratocaster pickups, Fender Telecaster pickups.

• Humbucker Pickups:

• Characteristics: Humbucker pickups consist of two coils of wire wired in series and with opposite polarity (Mottola, 2013). This configuration cancels out much of the hum and noise associated with single-coil pickups, while also producing a thicker, more powerful tone with increased sustain. Humbuckers are often favored by rock, metal, and blues players who seek a high-output tone with plenty of crunch and sustain.

• Notable Examples: Gibson Les Paul pickups, Seymour Duncan JB, Dimarzio Super Distortion.

• P-90 Pickups:

• Characteristics: P-90 pickups are a type of single-coil pickup that is larger and more powerful than traditional single-coils (Bacon, 2005). They produce a tone that is somewhere between a single-coil and a humbucker, with a thick, warm sound that is also articulate and dynamic. P-90s are often used in blues, rock, and punk music.

• Notable Examples: Gibson Les Paul Special, Gibson ES-330.

• Active Pickups:

• Characteristics: Active pickups contain a built-in preamp that requires a power source, typically a 9-volt battery (Hunter, 2015). They produce a very high-output, clear, and articulate tone with excellent sustain and noise reduction. Active pickups are often favored by metal players who seek a powerful and precise tone.

• Notable Examples: EMG 81, EMG 85.

Key Common Features of Electric Guitars: The Building Blocks

Despite their differences, all electric guitars share certain key features:

• Body: The body provides the foundation for the guitar and influences its overall tone and sustain.

• Neck: The neck is the part of the guitar that the player holds and frets the strings. Necks are typically made of maple or mahogany and come in a variety of shapes and sizes (Denyer, 1992).

• Fretboard: The fretboard is the surface on the neck where the frets are located. Fretboards are typically made of rosewood, maple, ebony, or synthetic materials.

• Frets: Frets are metal strips embedded in the fretboard that allow the player to accurately produce different notes.

• Headstock: The headstock is the part of the guitar that holds the tuning machines.

• Tuning Machines: Tuning machines ("tuners") are used to adjust the tension of the strings and tune the guitar.

• Bridge: The bridge is the part of the guitar that supports the strings and transmits their vibrations to the body.

• Pickups: Pickups convert the vibration of the strings into an electrical signal.

• Controls: Controls allow the player to adjust the volume and tone of the guitar.

• Output Jack: The output jack is used to connect the guitar to an amplifier.

The electric guitar is an incredibly versatile instrument with a vast array of options to suit different playing styles and musical genres. Understanding the different types of electric guitars, their unique characteristics, and their common features is essential for any guitarist seeking to explore the full potential of this iconic instrument. Whether you prefer the raw power of a solid-body guitar, the warm resonance of a hollow-body guitar, or the versatility of a semi-hollow guitar, there is an electric guitar out there that is perfect for you.

References

Bacon, T. (2005). 50 Years of the electric guitar. Backbeat Books.

Denyer, R. (1992). The guitar handbook. Alfred A. Knopf.

Hunter, D. (2015). The guitar amp handbook: Understanding tube amps and solid-state amps. Backbeat Books.

Mottola, R. M. (2013). Building electric guitars. Bold Strummer Ltd.

Smith, R. (2002). American guitars: An illustrated history. Collector Books.

Wheeler, T. (1992). American guitars: An illustrated history. Harper Perennial.
